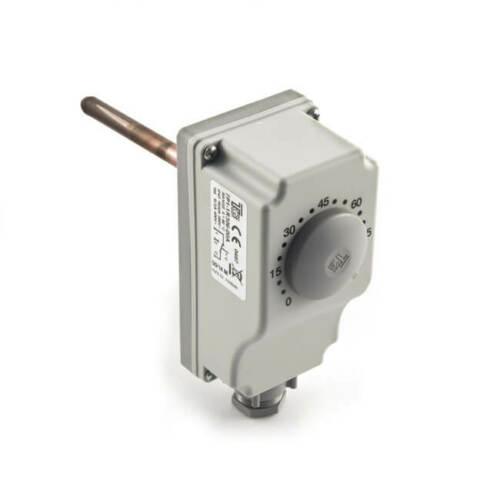

Thermostats to IEC 337-1 standard. Liquid expansion operation, with stainless steel electrically welded membrane sensors. Changeover microswitch with Silver contacts. Calibration accuracy: ± 3%. Base cover and knob made from shock-resistant Thermoplastic material. Supplied with Thermoplastic sealed gland for cable entry. Control thermostats for boilers and heating systems. Pocket has 1/2" BSP TM connection.
Operating temp. range: 0 to 90°C.
Differential: 6°C.
Max. body temp.: 85°C.
Max. bulb temp.: 110°C.
Contacts: SPDT, 16 (4) A, 250 V AC.
Protection: IP43.
Dimensions: 101 mm x 53 mm x 58 mm.
Stem: 100 mm x 8 mm diameter.
Accuracy± 3%
Contact Rating SPDT, 16 (4) A, 250 V AC
Differential Temperature6°C
Ip Rating IP43
Manufactured Approved To IEC 337-1
Max Bulb Temp Max: 110°C
Temperature Range 0 to 90°C
Thermostat Dimensions 101 mm x 53 mm x 58 mm
